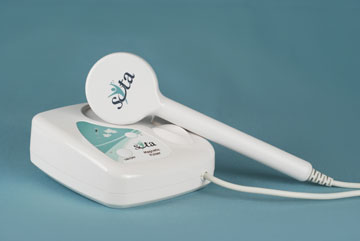

Sota Magnetic Pulser

MP-6


The Alternative Health Product That's Easy to Use

The Sota Instruments Magnetic Pulser - MP-6, is a pulsed magnetic field generator (PEMF) that is designed to help promote muslce relaxation and over-all wellness. The Sota Magnetic Pulser is thoroughly tested and guaranteed to operate as per the specifications.  The Magnetic Pulser (MP- 6) is designed to generate a powerful (~6,000 Gauss) rapidly pulsed (~2.5mS) magnetic field. The high quality capacitor that stores and discharges the energy is rated at 30 Million Discharge Cycles! This means that the average user will get a lifespan of about 10 years or more from the Sota Magnetic Pulser.  The Magnetic Pulser is part of a wellness protocol that also includes the Sota products - Bio-tuner, Silver Pulser, Water Ozonator and Lightworks.

The pulsed magnetic field energy is applied by holding the long white handle and targeting the affected region with the rounded coil end. Inside of this rounded applicator is a large copper wound coil that pulses a powerful burst of magnetic field energy on a timed cycle over a period of 20 minutes. The applicator head is clearly marked for negative North polarity as this is considered the most beneficial in the literature on magnetic field therapy.

The new model MP6 features two pulse modes 1) a fast mode that delivers 1,600 pulses over the timed session - at a magnetic field strength of 2,500 Gauss and 2) the original mode that delivers 255 pulses over the timed 20 minute session with a magnetic field strength of 6,000 Gauss. The fast mode will not penetrate as deeply as the regular mode, but it can be very useful in those situations where you need a faster pulse time to possibly ahcieve faster results. Pulsing at a faster rate sets up resonance waves that travel through the liquid environment of the body, blood, lymph, etc. This may assist in faster release of obstructions, calicifications, toxins and so forth.

The regular or original mode is good for use on deep-seated issues as the 6,000 Gauss magnetic pulse penetrates all the way through the body. So, this will go into large muscle areas, bone and all other tissues.

Long lasting Results with Pulsed Magnetic Fields

Pulsed magnetic field energies are a time-tested method, capable of producing fast and long-lasting results! The Magnetic Pulser requires no direct physical contact, but the effect is increased by close direct contact.  The rapid ON and OFF pulse of the  Magnetic Pulser produces a deep penetration of the magnetic field energies, unlike static field magnets such as magnetic wrist bracelets or magnetic wraps. Pulsating magnetic field energy produces motion of the charged ions in tissues, helping the body in its natural cleansing and rebuilding processes.

How to Use the Magnetic Pulser

The rounded applicator head contains a large copper coil that produces a strong and deeply penetrating magnetic field and the magnetic pulser is ergonomically designed to easily reach the areas of application. The Magnetic Pulser applicator is simply held up against the area of concern. It may be used through clothing as the magnetic field is deeply penetrating. Use the pluser on joints, muscles, lymphatic drainage areas or over internal
organs. It should not be used over the eyes and should not be used by women who are pregnant or may be pregnant. The applicator may be used for more than one twenty minute cycle at a time. The applicator coil will begin to warm up after a few minutes of use. This is normal and not a sign of any problems with the device.



Unlike a number of other frequency generators in our catalog, the MP-6 is not designed to target the entire body at one time; instead, the round applicator coil is ideally designed for targeting specific areas of concern.  Pet owners also appreciate the magnetic pulser's non-invasive applicator.  There is never any unpleasant sensation or electrical shock when using the magnetic pulser.  The applicator head is clearly marked for positive and negative polarities.  The side of the applicator displaying the Sota Instruments logo is positive polarity and the opposite side is labeled as negative North Pole.  In most cases, the negative North polarity is suggested as it is a constricting or confining energy, whereas the positive polarity is said to be of a stimulating nature.

Magnetic Pulser - $350.00 - The NEW Magnetic Pulser, Model MP-6 featuring two pulse rates.

Transformation Technologies has been researching electronic health products since 1985 and we have been selling the magnetic pulser since 1994 in it's earliest hand-made model.

Transformation Technologies
Toll free U.S. number - 877-287-0912 or (760) 333-4579.
Email us at - vristo@earthlink.net

Shipping will be added at time of purchase. Overseas customers may be required to
pay additional import taxes. This varies according to each country or trade zone


Join the Sota Community

Members of the Sota Community have access to owners manuals and in-depth video instruction on using all of the Sota products. You also have access to the informative Sota Newsletter. Joining the Sota Community is easy! Just place your initial order directly with Sota Instruments per ordering option #1

Please Review our two Ordering Options Below

Option 1 - order directly from Sota Instruments and receive an Extra 10% discount on your first purchase. Share this Referral link with your friends and family and they will also receive a 10% discount on their first purchase. You must click this link to enter the Sota ordering system:

http://www.sota.com/default.aspx?page=15&rtd=CA50025

In the event the link is not active, call Sota at 800-224-0242 and give the operator your Referral code number CA50025. Pass this Referral code along to your family and friends and they will also receive the 10% discount. Sota will process your credit card and ship the items directly to you from Canada. Charges will include item amount & shipping.

Option 2 - order directly from Transformation Technologies. No retail discounts are available with this option.

To Order from Transformation Technologies call:

Toll Free in U.S. and Canada - 877-287-0912 or (760) 363-5496



Magnetic Pulser Features

  • Operates from an International AC-DC Wall Adapter (included) for use in any country
  • Can operate from a 12 Volt DC source like an automobile battery
  • Quartz crystal micro-computer controlled functions for precise waveform generation and accurate timing sequences
  • Fully Automatic - the MP6 will automatically charge and discharge - no manual pulsing required
  • Two separate pulse modes: a fast mode with 1,600 pulses per timed period and a regular mode with 255 pulses
  • The fast mode has a magnetic field strength of 2,500 Gauss. The regular mode has a strength of 6,000 Gauss
  • A Red LED light indicates either the unit has completed a 20 minute cycle, or an overload condition has occurred
  • LED Light Bar-graph - a Led light bar-graph illuminates sequentially giving a visual indication of the MPG charging up
  • Audible output option - the MP6 will beep each time the Magnetic Pulse is delivered to the coil
  • Double-insulated - to ensure the greatest electrical safety with no exposed wires or leads
  • Coil is completely enclosed in epoxy with no exposed wires or leads
  • Long life capacitor -  expect well over 30 million cycles of operation
  • Overload Protection - MP6 will automatically shut down if too much current is detected
  • Fast charging cycle - capacitor fully charges in 3.5 seconds
  • Circuit board is Gold-plated for extreme reliability and workmanship
  • Unit ships with an International wall adapter for operation in any country 110 v. / 60 Hz. to 220 -240 v./ 50 Hz.
  • Shipping weight - approx. 5 pounds. Net weight - 3 pounds, 10 ounces.
  • Warranty - two years parts and labor

Specifications

Measured on a Tektronics TDS 210 Digital Real-Time Oscilloscope and Wavetek AD105 Clamp-On RMS Ammeter

  • Magnetic Field Intensity in Regular Mode - ~6,000 Gauss at face of hand paddle
  • Magnetic Field Intensity in Fast Mode - 2,500 Gauss
  • Timed Session Duration - 20 minutes
  • Typical Peak Charge Voltage - 350 Volts DC
  • Max. Peak Charge Voltage - 375 Volts DC
  • Energy Storage Capacitor - 600 uF, 450 Volts DC
  • Max. Peak Current Discharge into Coil - 150 Amps
  • Pulse Rise Time - <1.0uS (micro seconds)
  • Pulse Duration -  ~2.5 mS (milli seconds)
  • Main Coil Inductance -  ~2.5 mH (milli henries)
  • Flux Density - 40,500 Ampere Turns
  • Double-insulated design for highest electrical safety / No exposed wires or leads
  • Power supply is a constant current design
  • Capacitor is rated for some 30 million cycles of operation, giving an average Ten years of use
  • Maximum Energy Storage - 42.18 Joules (Watt*Seconds)
  • High magnetic power output - generates maximum ~42.18 Joules (watt seconds) of energy through a 600uF, 330 volts DC custom photoflash capacitor.

    NOTE: there are other "magnetic pulsers" being marketed that use capacitors not specifically designed for photo-flash applications. These capacitors are not designed for the rigorous use that are demanded of them and they will not last anywhere near the 30 million discharge cycles of the SOTA Magnetic Pulser, despite any claims to the contrary.

    Warranty and Refund Information

    Magnetic Pulser has a two year warranty and a limited 30 day money back guarantee. If the unit is returned unused within the first 30 days, there is a full refund (not including shipping charges). If the unit has been used, the 30 day refund is subject to a 10% restocking charge to cover replacement of accessory parts.


Note: the opinions stated are the views of Transformation Technologies and do not represent the opinion of SOTA Instruments. The SOTA units are classified as Consumer Products designed to be used as part of a Wellness Lifestyle. The SOTA units are not medical devices nor are they intended to diagnose, treat or cure any medical or health condition. The use, safety or effectiveness of the SOTA units, has not been approved by any government agency. Please consult a health practitioner for any medical or health condition. Results are not typical.
