BCX ULTRA






BCX ULTRA Frequency Generator

Fully-Programmable RF Plasma Energy Rife Instrument

A major breakthrough in frequency technology, the NEW BCX ULTRA RF (radio frequency) noble gas tube frequency generator is built with the ultimate standards for the professional  scientific research community and independent home researcher. This is NOT just another off-the-shelf frequency Function Generator but is an entirely NEW (based on 15 years experience in frequency-based technology) solid-state instrument, designed from the ground-up! The BCX Ultra is the result of many years of intensive laboratory research and testing which truly brings frequency instruments into the 21st century with unequaled precision and performance. Features include 1236 pre-set programs and many versatile capabilities such as Frequency Gating and the ability to combine separate carrier frequencies with the modulation frequencies of your choosing. The BCX Ultra has complete manual pragramming functions with such features as frequency sweeping from one frequency starting point to your ending point in adjustable increments, manual frequency input from 1Hz. to 4 million Hz. and a wide selection of waveforms and carrier frequencies. BCX is a complete frequency and waveform generator that can generate all known waveforms, along with their odd and even harmonics. This assures that the primary Rife frequency or an integer multiple of that frequency will get the job done! Hundreds of individual researchers have validated the effectiveness the BCX. Many prominent authorities in the world of finance and social trends are sounding the warning of social and economic decline or even outright collapse in the not too distant future. In the worst of these scenarios, conventional medical services will be very strained, rationed, or non-existant. The BCX Ultra is the most versatile healing technology that should be on everyone's list for emergency preparedness. Without our health, we cannot help our loved ones or communities in need.

BCX Ultra Features

Standard Package Includes

* BCX Ultra control unit with Universal 110 to 220 volt adapter
* Two Noble Gas glass electrodes - containing argon, krypton, xenon & neon

* Metal footplate electrodes
* Metal hand held cylinder electrodes
* Pre-gelled body contact electrodes (1 pair)
* DVD Instruction disk
* Printed manual containing over 1,200 program selections

BCX Ultra - Rife Frequency Instrument - $2,695.00
FREE Ups Ground Shipping - international customers email for rates
Shipping weight of standard BCX package is 11 pounds


Scroll down the page to see our new model BCX Ultra Lite. The Ultra Lite does not replace our BCX Ultra. It is a model option for users who desire a stand-alone broadcasting plasma tube configuration.

FREE Ups Ground Shipping - international customers email for rates
Shipping weight of standard BCX package is 11 pounds

Optional Accessories to Customize your BCX

Note: refer to complete specification Pdf. for more information on the BCX and all accessory options.

BCX ULTRA Specifications: Complete Specifications Page

* Red, Green or Blue Led Applicator Wands - for localized stimulation are available for - $90.00 each.
* High Intensity - Red, Green or Blue Led Applicator
- $262.00 each

Led Applicator Frequency - is adjustable up to 4 MHz.

The BCX can only accept a single LED applicator at one time. Some customers have asked if they can use two of these at once. While this could be desireable, the LED power requirements are too high for the BCX to run more than one at a time.

* Extra Strength, thicker Glass Probes
- can be shipped with original BCX purchase for an additional $45.00 a pair
* Replacement Glass Tubes
- $75.00 each for standard thickness glass or $97.50 each for heavy duty glass

Selection of Free Standing Electrodes - for hands free therapy -

Vortex - Coil Electrode - free standing to sit on a table or bed side. Allows for insertion of hand into the glass coil - $1,195.00
scroll down the page to see a photo of the Vortex Coil.
Power Output - 48 Watts maximum output depending upon program and impedance.

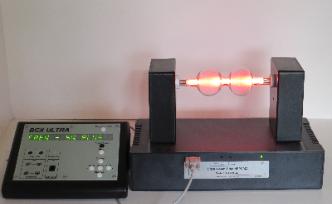

Double Bubble Beam Tube
- BT- HF-EFG - Cost: $2,995.00
Operating Frequency Range
- 1Hz. to 10,000 Hz.
Wave Form
- square wave only
Duty Cycle
- 1 to 100 percent
Carrier Frequency Range - 1 to 666Hz.
Modulation Frequency - able to combine two frequencies at a time
Frequency 1
- adjust from 1Hz. to 10,000 Hz.

Frequency 2
- adjust from 1Hz. to 10,000 Hz.
Energy Output type - Efield (electric field generator)
Power Level Adjustments
- variable intensity adjustment - 80 to 100.
Power Output - 20 milli-joules / pulse. (72 Watts @ 3,600 Hz.
)

Double Bubble Beam Tube
- BT-HFPCM2 High Frequency - Cost: $2,665.00
Operating Frequency Range - adjustable pulse from 1 Hz. up to 4 mHz. if using a squarewave and up to 100,00 Hz. for all other wave forms

Wave Form
- any BCX waveform can be used. Maximum frequency accuracy and power output with squarewave
Duty Cycle
- 1 to 100 percent
Carrier Frequency - adjustable ranges (1) from 1 to 100,000Hz. and (2) from 0.100mHz to 4.000 mHz (squarewave)

Modulation Frequency - able to combine two frequencies at a time:
Frequency Number One - adjust from 1 Hz to 100,000Hz. or from 0.100mHz to 4.000 mHz
Frequency Number Two - adjust from 1 Hz. to 100,000 Hz. or from 0.100mHz to 4.000mHz
Energy Output type - RF (radio frequency)
Power Levels
- variable intensity adjustments from level 1 to 100. 150 Watts maximum output depending on program.

Optional Free-Standing Vortex Coil Electrode - $1,195.00

The coil electrode is filled with Argon Gas. It allows for using the BCX without the need for making
direct contact with the body. You can insert a hand and forearm into the coil center if desired. There is not any electrical shock felt when touching the active glass coil. The vortex coil can be frequency-modulated from 1 Hz. to 45 kHz. with any wave form such as square wave, sine wav, etc. Intensity can be adjusted.




Footbath Underwater Array
- Cost: $1,295.00

Exclusive Foot Bath Attachment that Delivers Programmed Frequencies into the Water

BCX now offers the benefits of an optional "foot bath" attachment . The foot bath electrode attachment is a great way to end a BCX session to help remove the released toxins from the body. The great advantage here is the ability to run programmed frequencies through the foot bath electrodes. There is not other system that has this cabability. As shown in the photo, the module to the left is the platform for the feet. This connects via cable to the foot bath power module. Then, the foot bath power module connects via cable to the BCX Ultra frequency generator. You will need a BCX Ultra frequency generator in order to run the programs through the footbath. The footbath power module is NOT a stand alone frequency generator. This should offer much better results over traditional foot spa or foot bath appliances. Electrode material is corrosion-resistant stainless steel so it does not need to be replaced every 15 or 20 uses like other systems - $1,295.00



Foot Bath electrodes and cables - $1,295.00

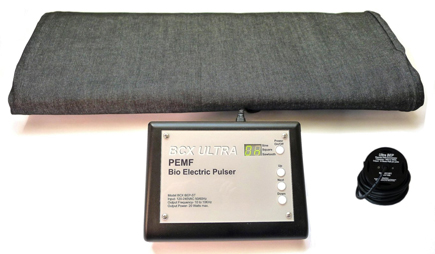

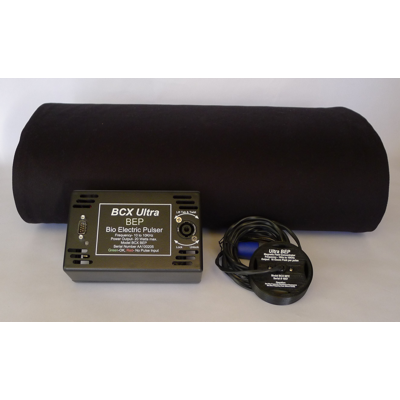

Pulsed Electromagnetic Field Therapy Mat (PEMF)
- this option provides all of the many benefits of PEMF therapy with the unique capability of pulsing BCX Rife Frequencies into the mat from the BCX control unit. The frequency range of the mat is from 10 Hz. to 10,000 Hz. Power output is maximum of 20 Watts, depending upon the program. We are introducing this at a fantastic price. Full body PEMF mats typically run from $1,700.00 up to $4,000.00.
Purchase the BCX Pemf Mat accessory for only - $795.00
.

Frequency Range - 10 to 10,000 Hz.
Duty Cycle Control - 1 to 100%
Waveform - select from any of the standard BCX waveforms
Intensity Adjustments - 1 to 100 on output level
Maximum Power Output - 20 watts.



One Year Warranty on main control unit and glass tubes against pre-mature failure or gas leakage during normal use. Does not cover loss, careless use or accidental breakage. Defective or broken glass tubes must be reported immediately upon initial inspection of the BCX package.

Full 60-Day Money Back Satisfaction Guarantee

Note: there is a 10% restocking fee for returns. Shipping cost is not refundable

Warranty - BCX ships with a one year warranty against defects. Coverage does not include mis-use or careless handling or breakage of glass tubes from accidental dropping on floor, etc. Customer is responsible for the cost of shipping returned merchandise

Control Unit

Power supply
Input: 100-240VAC, 50-60Hz, 1.2A
Output: 24VDC @ 2.0A
Dimensions: 11.0" x 8.0" x 3.0"
Weight - 2.5 lbs

Controls

* Input: 1- jack for Power Input (DC power plug, 2.5mm, center positive)
* Input/Output: jack for computer (USB Type B)
* Outputs: five - two jacks for footplate electrodes, two for the noble gas, glass tube electrodes and one LED wand
* Buttons for - Power On/Off - Start - Pause - Stop - Change - OK - Back - Next

Output Type: Select from numerous combinations


* Hand Held Metal Cylinder Electrodes
* Footplate electrodes only - these also deliver the RF (radio frequency) energies
* RF - noble gas ionized raytubes only (containing Argon, Krypton, Xenon and Neon)
* LED Wand only
* Auxiliary only
* Footplate electrodes & Noble gas Ray Tubes simultaneously
* Electrodes & LED Wand simultaneously
* Electrodes & Auxiliary simultaneously


Standard Ray Tube Electrodes and Hand Held Cylinder Electrodes


* Electrodes are “differential”. Each operates at a different polarity than the other and they change polarities with frequency - when one is Positive the other is Negative. All three waveforms can be applied to the metal electrodes.

* Ray tubes (the hand-held glass tubes) also have polarity, but the Carrier is defaulted at 44,660kHz. Any Carrier frequencies over 100kHz. entered in the Ultra when using Ray tubes will only apply to the metal electrodes. The frequency range of the glass tube electrodes is from 1 to 100,000 Hz. plus the output is rich in harmonic frequencies. For the hand held metal cylinder electrodes and for the foot plate electrodes, you can choose from the default carrier frequency of - 1Mhz., 1.25 Mhz. or 1.67Mhz. When using the BCX in manual programming mode, you can enter any carrier frequency range from 1 Hz. to 100,000 Hz.

* LED Wand has no polarity and all three waveforms can be applied to it. The frequency output is one of simple pulse repetition rates



BCX LCD Status Indicator Panel

* Five - Green LED 16 character alpha numeric display
* LED indicators for - Ray tubes, Electrodes, LED Wand, and Operating Functions
* View Built in Instructions on LCD display screen
* Run a Pre-program - Scroll or select a built-in program name or number. Both are displayed on screen
* Run a User program - Scroll or select your custom program by name or number
* Create - Edit - Save - Run - a custom program
* View a Program
* Copy a Program to another User program location
* Erase a User program

Computer Control Capabilities


* Factory Preset programs: 1236 preset programs for many common applications listed in the BCX operating manual
* User programs: 256 channels to store your custom made programs consisting of wave forms, frequency rates, carrier and time factors
* Sequence Frequencies per Pre-program or User defined program: up to 80 single frequency or 40 dual frequencies

Variables for each Program - User changeable for custom designed programs


* Numbering a Program: use up to four digits
* Naming a Program: use up to eight alpha-numeric characters




Explanation of BCX Ultra Waveforms, Frequencies and Harmonics Four Page Pdf.

Additional Explanation of Sine Waves, Square Waves and other wave forms



BCX ULTRA Specifications: Complete Specifications Page

The Programmed Frequency Generator with Penetrating RF Frequencies

Now you can reach the maximum capabilities and potential in Programmed Frequency Technology with the most advanced gas plasma delivery system available.  Our new convenient hand held RF (radio frequency) Ray Tube technology accelerates and maximizes the potential of energy research in ways previously unavailable. Both of the glas ray tubes are filled with four noble gases - Argon, Krypton, Xenon and Neon.

The Plasma Ray Tubes are radio frequency (RF) powered, which means your selected frequencies are broadcast and penetrate without the type of limitation seen with skin contact electrodes where the electricity can skim over the surface of the body without fully penetrating the skin's natural resistance.  While foot plate electrodes and metal hand cylinders offer a good alternative for many individuals, there is no modality that beats the penetrating power of Radio Frequency pulsations. Simply connect the Glass Tube electrodes and the frequencies are routed directly  tthrough the ionized plasma Ray Tubes via broad spectrum radio frequencies. This  extraordinary delivery system is unmatched and penetrates the entire target  area fully and completely.  The energy focus is the most concentrated at the site of application, but also affects the entire body as well, due to the RF Ultra-Sound effects propagating throughout the lymphatic, plasma and cellular fluids of the system. These harmonic ultrasound resonance frequencies result from the pulsating pressure of the light mass emanating from the ionized noble gas tubes. This is the same principle that accounted for the observed MOR (Mortal Oscillatory Rate) oscillation effects as confirmed by prominent historical researchers. The technology is 21st Century, but the results are the same! BCX Ultra utilizes proven concepts including frequency gating (pulsing) and the ability to combine a separate carrier frequency with a modulation frequency to assure the deepest penetration and harmonic interaction. These are the features that produced such incredible results with the original frequency technologies of the 1940's. Some units that are being advertised are simple off the shelf frequency/function generators and cannot offer the results of the BCX Ultra.

The Glass tubes may be applied in many different ways

    • apply the tip of the glass tube onto acupuncture points
    • on chiropractic trigger points
    • apply to reflexology points
    • slowly sweep over lymphatic drainage sites
    • apply to Chakra locations
    • grasp one tube in each hand for complete body penetration
    • apply a tube on either side of a muscle stress or strain

Our Ray Tubes use only the most durable Quartz Glass which are evacuated of Air, Fire-Quenched, and filled with a mixture of four different Inert Gases known as Noble Gases (Argon, Neon, Krypton, Xenon).  The difference in effectiveness comparing ionized noble gas tubes versus stainless steel hand and foot electrodes is profound due to the deeply penetrating nature of the RF radio frequency energies.   We include three kinds of applicators (foot plates, two glass tubes and hand-held cylinder electrodes) in order to offer our customers the greatest levels of choice. The high voltage / low current radio frequency (RF) energy ionizes the noble gases in the glass tubes into a plasma state. The RF energy then passes through the capacitance of the glass evenly and thoroughly, permeating the desired area, as well as the body as a whole. The RF glass tube unit, being Monopolar, has only one wire connected to each of the two glass tubes, so that when the Tubes are used on an area of the body, that area absorbs the Modulated Audio and R.F. carrier energy and frequency, with the return path of the circuit being completed through the capacitance of the body. Stated simply, the body completes the circuit between the two glass tubes. The RF energy is produced by an electronic circuit that  derives its signal from a pulsed repetition rate within the audio frequency  spectrum. This pulsed rate has been shown over many years to be of superior value.  Each BCX RF Plasma Frequency Instrument has with a full 60-day money back guarantee and a full one year warranty on all parts and circuits. Warranty does not cover misuse or inappropriate use of this research instrument.

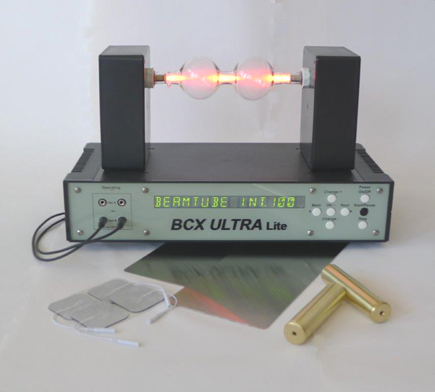

BCX Model ULTRA-LITE - $3,695.00

Special Sale Price to the end of September 2014 - $3,325.00

The New BCX Ultra-Lite is fully programmable and features the same library of pre-set Rife programs as our
BCX Ultra. It incorporates the "double bubble" glass tube, a pair of hand-held electrodes, footplates and sticky pads.
Please be aware that the optional accessory items such as Led, Vortex Coil, Double Bubble tubes, Magnetic Mat cannot
be attached to this unit. They all require the purchase of our main BCX Ultra unit.

Includes Free U.S. Ground Shipping. Customers outside of U.S. please email for rates

- Visit our Health Resources pages for hundreds of health and nutrition tips -
For Lymes disease, Fibromyalgia, Alternative Cancer Therapy and much more







Included with Order

BCX ULTRA Control Module
Universal AC adapter for 110 to 240 volts
Stainless Steel Hand Electrodes - one pair
Two Glass Tube Electrodes (Ray Tubes filled with Noble gas mixture)
Set of metal foot-plate electrodes
One set pre-gelled body contact electrodes
Carrying/storage case
Instruction CD

Comprehensive Operating Instruction binder with Frequency Tables with over 1,200 listings

NOTE: Colored Led Wands, Foot Bath and the various free standing glass tube attachments are optional accessories
and are not included in the basic purchase price.


Note: there is a 10% restocking fee for returns. In the event of repair or servicing, the BCX would need to be returned to the manufacturer and the customer is responsible for any shipping expenses


Disclaimer: the BCX ULTRA Plasma Frequency Instrument is not a medical device.  It is an electronic frequency generator and research instrument. It is not intended for the diagnosis, prevention, treatment, cure or mitigation of any disease in humans or animals.  It is not designed to affect the structure or function of any system in the body.  If you have a health-related condition that requires medical attention, always consult with a licensed health care professional. BCX Ultra should not be used by women who are pregnant or believe they may be pregnant. BCX Ultra should not be used by children or any unconsenting individuals. Individuals with heart disease, epilepsy or other neurological conditions should not use the BCX Ultra.
